Mini PCI Express PCIe RS232 16C950 +Parallel Card



Mini PCI Express PCIe RS232 1 Serial (16C950) + Parallel Card      (SUPPORT Vista, Win7 )

   For Acer Netbook Aspire One & ASUS  Eee PC

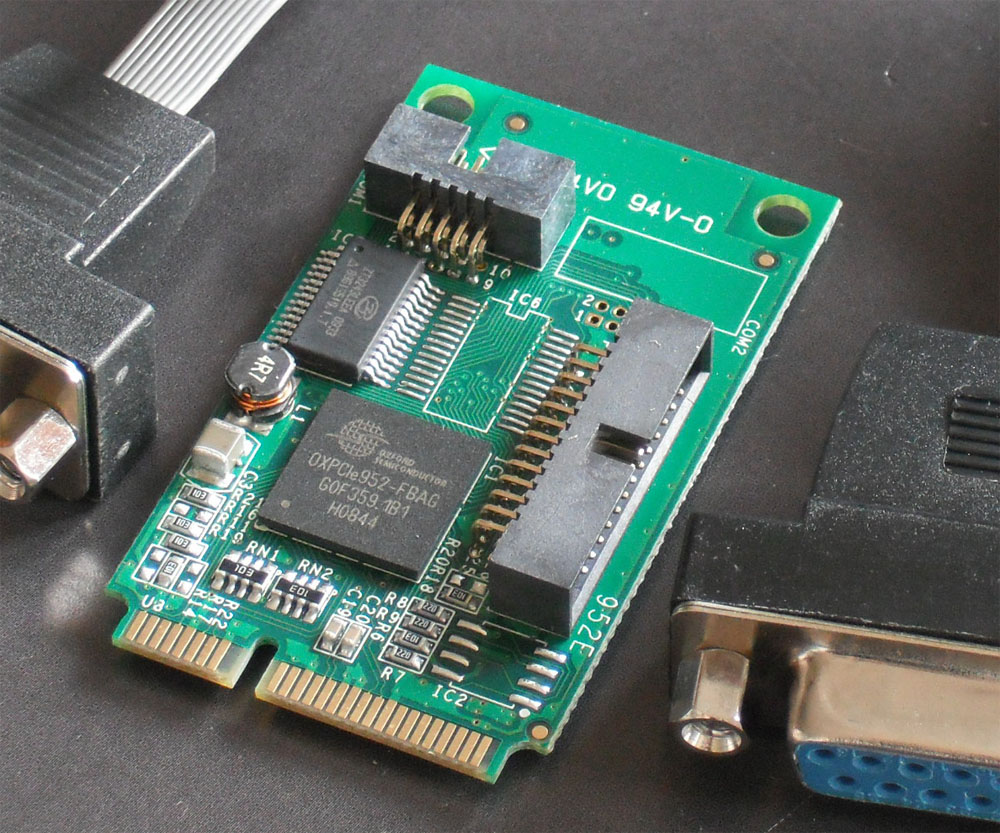

PCI-e one chip solution(OXFORD OXPCIe952 chip)

It's real COM Port in your computer, not USB to COM port
  high compatible with serial type device.

It's real Parallel Port in your computer, not USB to Parallel port high compatible with Parallel type device (Printer, KeyPro, Scanner).

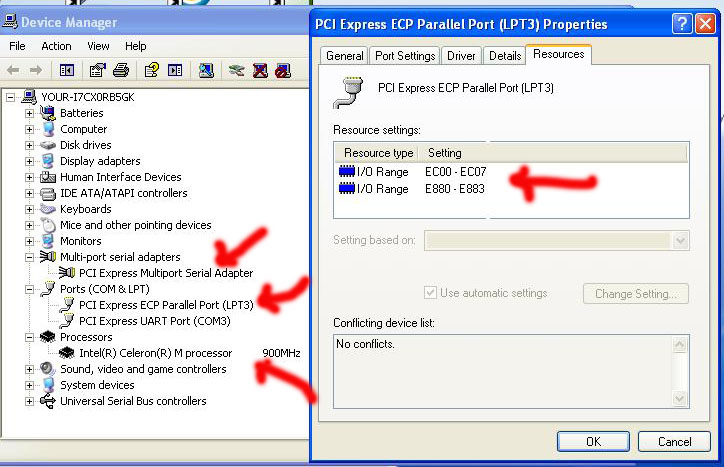

                                  in Win 8 /64  Device Manager





Mini PCIe 1 Serial  + 1 Parallel in ASUS Eee PC Windows XP Device Manager



Mini PCIe 1 Serial  + 1 Parallel in ASUS Eee PC Windows XP Device Manager



The adapter card is based on a oxford single chip design, that allows you to harness the full capability of PCI Express (PCIe) - providing optimum reliability and speed, and reducing the load applied to the CPU by as much as 48% over conventional serial cards.



FEATURES:

* Fully compliant with PCI Express Base Specification 1.1
*  Provides one DB9 RS232 ports
* High speed 16C950 compatible UART controller on-board
* Supports serial transmission rate up to 460Kbps
* On-chip hardware auto flow control to guarantee no data loss
* Built-in 128K byte DMA software FIFO
* No IRQ resource required
* Easy Plug and Play Installation
* Works with various types of RS232 serial devices including modems,
  PDAs, label printers, bar code scanners, digital cameras, and more

* Single port IEEE 1284 Parallel ports with communication speeds up to 15Mbps/s
* Supper IEEE 1284 Parallel ports standard
  ECP(Enhance Capacity Port)/ EPP(Enhance Parallel Port)
  SPP(Standard Parallel Port)
* Easy Plug and Play Installation
* This high performance SPP/EPP/ECP parallel card adds one DB25 parallel port,
   perfect for connecting printers, scanners CD-R/RW drives, memory card readers,
   printers, scanners, bar code readers and more
System Requirements:

* Windows® 2000, XP 32/64, Server 2003 ,Vista , Win7 32/64 , Win8  32/64 and Linux

 * Mini PCI ExpressCard-enabled system with an available Mini PCIe PCI Express Card slot



Accessories:

1 x Manual, 1 x Driver CD, 1 x 9pin serial cable, 1x 25 pin Parallel cable
