- I2C LED Matrix 24x16 Board
News Pi

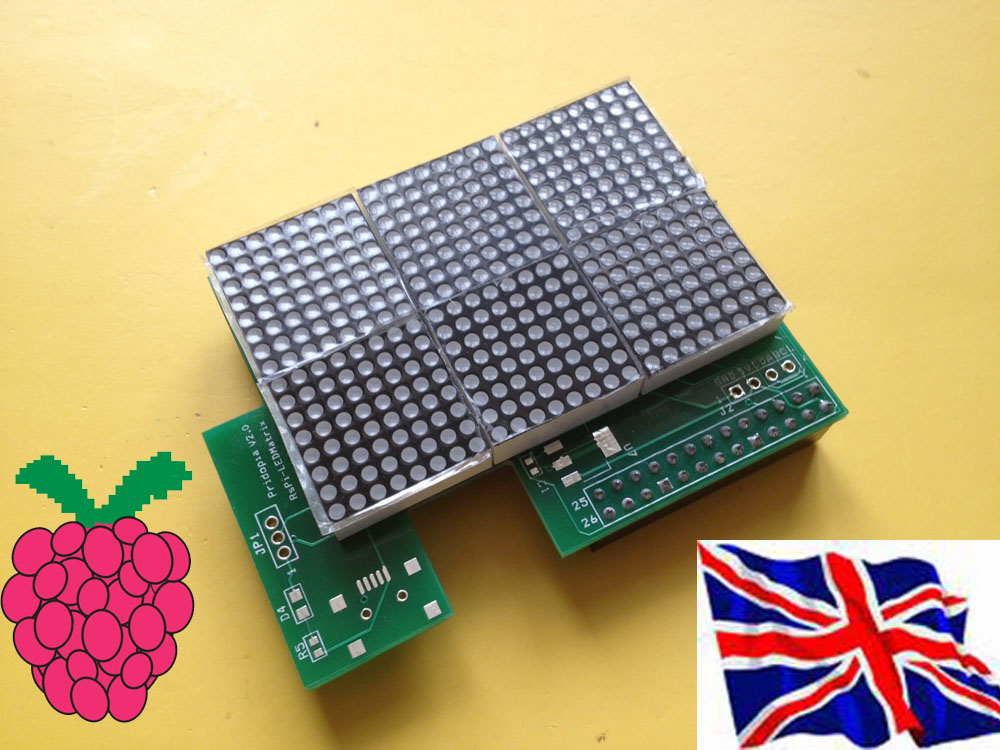

24x16 LED matrix board plug in Raspberry Pi
use
CYNTECH ICEBERRY CASE
Cyntech
ICEBERRY CASE X1 WiFi USB Dongle X1
5V power
adapter, Pi-message board-24x16 x1
The project display
top 10 BBC RSS news, will change to next news in every
90secs. with clock display on top, so you will know the
time. ( time from Raspberry Pi )
HT16K33
DataSheet
The HT16K33 is a memory mapping and multi-function LED
controller driver. The max. Display
segment numbers in the device is 128 patterns (16
segments and 8 commons) with a 13*3 (MAX.)
matrix key scan circuit. The software configuration
features of the HT16K33 makes it suitable
for multiple LED applications including LED modules and
display subsystems. The HT16K33 is
compatible with most microcontrollers and communicates
via a two-line bidirectional I2C-bus.
Feature
●● Operating voltage: 4.5V~5.5V
●● Integrated RC oscillator
●● I2C-bus interface
●● 16*8 bits RAM for display data storage
●● Max. 16 x 8 patterns, 16 segments and 8 commons
●● R/W address auto increment
●● Max. 13 x 3 matrix key scanning
●● 16-step dimming circuit
●● Selection of 20/24/28-pin SOP package types
70,71,72 for 8x16 x3 =
24x16
Provide 16 Python Test
Program
1.led8x16_j.py 24x16 moving image
2.led16x16-7172.py 16x16 test in address 71,72
3.led_time.py 2 line Date & Time information
4.led16x16.py 16x16 test in address 70,71
5.led_16x16_v2.py 16x16 display time & date
6.led_image.py 16x16 show image then Time &
date
7.led24x16.py 24x16 line test
8.time_check.py sync RTC tiem & System Time
9.led8x16-70.py 8x16 test in address 70
10.led8x16-71.py 8x16 test in address 71
11.led_single_img.py 24x16 display image first then
Time & date
12.led_single.py 24x16 display Time & date
13.led_16x16_small.py
16x16 3x5 small font clock
14.led_jd.py 24x16 input message test
(1) input "TEST"
for display all characters
(2)
input "Time"
display Time & Date
(3)
input "Smile"
display 6 Smile face
(4) input "Cont"
display 6 Block
New function 17,Mar 2014 update
15.Led16x16-m.py
16x16 RSS BBC scroll message & Time
16.Led24x16-m.py 24x16 RSS BBC scroll message & Time
Support our Pi_Scratch software
Detail
(1)
command LED+ "TIME" display Time &
Date
(2)
command LED+ "IMG" display 24X16
image & Time/Date
(3) command LED + "message" display message
LEDthis is led matrix demo -->
display "this is led matrix demo"
(4) command "LEDCLS" clean
24x16 screen
(5) command LPRINT + "message"
Maximum display message 5X7 8 character in 24x16 Matrix
NEW COMMAND 14,Mar
2014 update
(6)
command LED +”ram”
Display RAM usage
(7)
command LED +”stop” stop all display function
(8)
command LED +”wifi ip” display WiFi IP
(9)
command LED +”wifi ssid” display WiFi SSID
(10)
command LED +”wifi sig” Display Wifi signal
(11)
command LED +”RSS” RSS function on
(12)
command LED +”RSSOFF” RSS function Off
Download
24x16 Matrix Test
rar
24x16 Matrix Test
tar
User Manual
|
Package Content
1x Rs-Pi I2C LED Matrix 24x16 Message board
1x manual
( CYNTECH
ICEBERRY CASE NOT INCLUDE) |
|
|
